Lua Scripting

Introduction

FOME allows to extend and customize firmware functionality and behavior by providing a Lua script interpreter. Various sensors, signals, and state are provided for reading and manipulating , allowing to tailor a control strategy to fit the applications needs.

This page documents the most up-to-date version of FOME's Lua scripting support: not all interfaces are supported in earlier versions.

Overview

FOME provides Lua interface with a number of functions and types to interface with the firmware and to discern and manipulate its state and configuration. At a high level, the interface comprises these categories:

• A small utility library, including timers, and user-defined lookups; see the Utilities reference.
• General input and output; see the Input and Output reference.
• Firmware sensors and control; see the Sensors reference.
• CAN bus communication; see the CAN bus reference.
• SENT protocol communication; see the SENT protocol reference.
• Firmware state and configuration; see the Firmware ... TODO reference.

For examples see the files in FOME's lua/examples/ directory.

For a basic introduction see this wiki section.

Conventions

• The Lua interpreter will trigger an error if there is a mistake in the program: check the FOME Console to see errors and script output.
• Unless otherwise mentioned, all index parameters start with the first element at index 0.

Writing Your Script

The entire Lua script is read and validated at startup, then a global script function named onTick is invoked periodically by the firmware.

Here is a simple script to illustrate this behavior:

print('Hello FOME via Lua!')

function onTick()
    print('FOME called onTick()')
end

User-Defined Lookup Tables and Curves

FOME provides for user-defined lookup tables and curves for use with Lua scripting. These tables and curves are set in the FOME configuration (via TunerStudio) and lookups are interpolated along their definition.

The tables and curves have user-defineable names up to sixteen characters long. Their names and definitions are configurable in the Advanced > Lua Calibrations menu in TunerStudio.

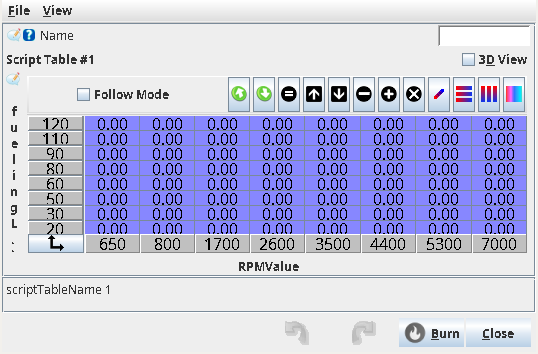

3D Tables

FOME provides four user-definable three-dimensional tables for use with Lua scripting. The first table affords the most precision, defined by single-precision floating-point values, while the remaining three tables are defined by 8-bit integers; all tables are eight by eight in dimension, defined by 16-bit integer coordinates.

TODO: insert TunerStudio Script Table dialog screenshots

Two functions are provided to interact with the user-defined tables:

• findTableIndex(name)
• table3d(index, x, y)

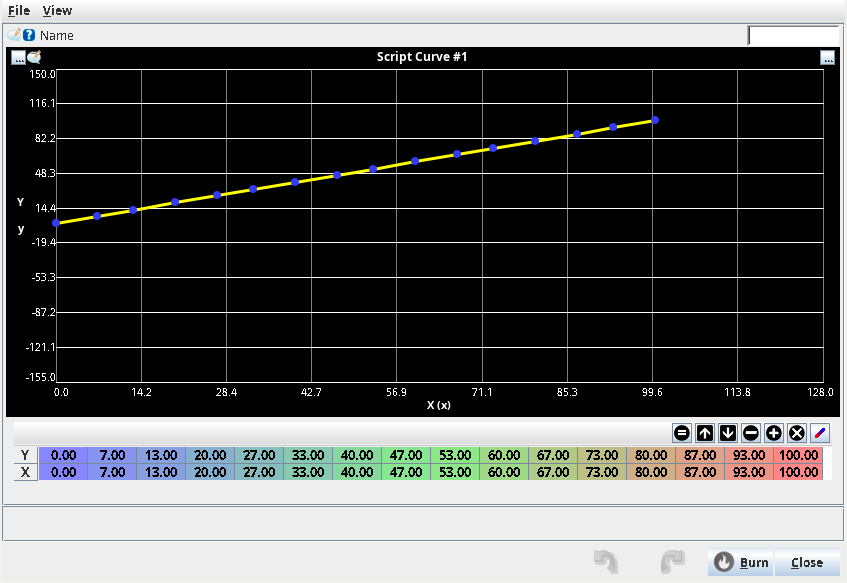

2D Curves

FOME provides six user-definable two-dimensional curves for use with Lua scripting. The first two curves affords the most accuracy, defined by sixteen single-precision floating-point coordinates, while the remaining four curves are defined by eight single-precision floating-point coordinates.

TODO: insert TunerStudio Script Curve dialog screenshots

Two functions are provided to interact with the user-defined curves:

• findCurveIndex(name)
• curve(index, x)

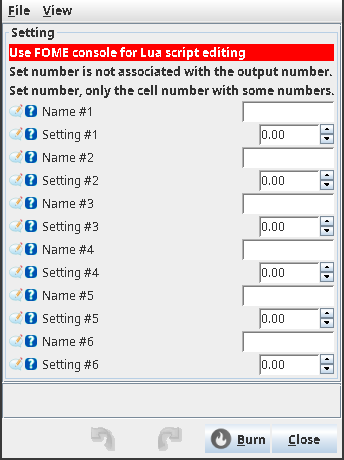

User-Defined Settings

FOME provides eight user-definable single-precision floating-point settings for use with Lua scripting.

• findSetting(name, defaultValue)

Lua Interface Reference

Utilities

info

These functions are included in all builds of FOME unless otherwise noted.

mcu_standby()

warning

mcu_standby is only availble in FOME builds targetting STM32 F4 and STM32 F7 MCUs.

Causes the firmware to place the MCU into a low current consumption standby mode.

no parameters

print(message)

Print a line of text to the ECU's log.

parameter	type	description
message	string	The message to print. Pass a string (or number) and it will be printed to the log.

setDebug(index, value)

Sets the debug channel of the specified index to the given value.

note

setDebug only works when FOME's debug mode is set to Lua.

parameter	type	description
index	integer	The index of the debug channel to set; 1 through 6.
value	float	The value to set the specified debug channel to.

setTickRate(frequency)

Set the frequency at which the firmware passes context to the Lua script. Primarily, this controls how often FOME calls the script's onTick function. Additionally, this affects how often other functions and callbacks of the script, like onCanRx, are invoked.

The default rate set at startup is 10 times per second (10 Hz).

parameter	type	description
frequency	float	The tick rate to set, in hertz. Values are clamped to be not less than 1 hertz and not more than 200 hertz.

crc8_j1850(data, length)

TODO: computes the OBD-II (SAE J1850) CRC-8 cyclic redundancy check on up to eight bytes of data

parameter	type	description
data	integer table
length	integer

interpolate(x1, y1, x2, y2, x)

Linearly interpolate a value x along the line defined by two points (x1, y1) and (x2, y2).

parameter	type	description
x1	float	The x-axis value of the first point of the line.
y1	float	The y-axis value of the first point of the line.
x2	float	The x-axis value of the second point of the line.
y2	float	The y-axis value of the second point of the line.
x	float	The x-axis value of the point to interpolate along the line defined by (x1, y1) and (x2, y2).

findTableIndex(name)

Determine the user-defined Lua script table index identified by its name.

parameter	type	description
name	string	The name of the user-defined table to determine the index of.

table3d(index, x, y)

Lookup a linearly interpolated value from the specified user-defined Lua script table. Tables are identified by their 1-based index: 1, 2, 3, 4.

parameter	type	description
index	integer	The index of the user-defined table to lookup into; 1 through 4.
x	float	The x-axis value to lookup in the specified table.
y	float	The y-axis value to lookup in the specified table.

findCurveIndex(name)

Determine the user-defined Lua script curve index identified by its name.

parameter	type	description
name	string	The name of the user-defined curve to determine the index of.

curve(index, x)

Lookup a linearly interpolated value from the specified user-defined Lua script curve. Curves are identified by their 1-based index: 1, 2, 3, 4, 5, 6.

parameter	type	description
index	integer	The index of the user-defined curve to lookup into; 1 through 6.
x	float	The x-axis value to lookup in the specified curve.

findSetting(name, defaultValue)

Retrieve the value of the user-defined Lua setting identified by its name, or the supplied value if the setting does not exist.

This is most useful when the script developer and consumer are different people, and also when editing the Lua script in TunerStudio.

parameter	type	description
name	string	The name of the user-defined setting to retrieve the value of.
defaultValue	float	The value to use if specified user-defined setting does not exist.

Timer

Timer is Lua type that keeps track of elapsed seconds. The timer does not initialize to a reset state; instead it initializes to a "foreverish" value.

timer = Timer.new()

Timer.new()

no parameters

Timer.getElapsedSeconds()

Returns the number of seconds since the timer was last reset.

no parameters

Timer.reset()

Resets the timer to begin counting from zero.

no parameters

Pid

Pid is a Lua type that implements a PID (proportional-integral-derivative) controller.

$u(t) = K_\text{p} e(t) + K_\text{i} \int_0^t e(\tau) \,\mathrm{d}\tau + K_\text{d} \frac{\mathrm{d}e(t)}{\mathrm{d}t}$

The implementation automatically tracks the time delta between Pid.get invocations.

pid = Pid.new(1.5, 0.2, 0.1, -80, 80)

Pid.new(kp, ki, kd, min, max)

parameter	type	description
kp	float	$K_\text{p}$, the proportional factor of the PID control.
ki	float	$K_\text{i}$, the integral factor of the PID control.
kd	float	$K_\text{d}$, the derivative factor of the PID control.
min	float	The minimum output value of the PID control; output is limited above this value.
max	float	The maximum output value of the PID control; output is limited below this value.

Pid.get(target, input)

Retrieves the PID controller's output given the target setpoint and the output of the process or system the PID is controlling.

parameter	type	description
target	float	The target setpoint of the PID controller.
input	float	The output of the process or system that is feedback to the PID controller.

Pid.setOffset(offset)

Sets the amount to statically bias the PID controller output by.

parameter	type	description
offset	float	The amount to add to the computed PID controller output.

Pid.reset()

Resets the PID controller.

no parameters

Input and Output

getAuxAnalog(index)

parameter	type	description
index	integer

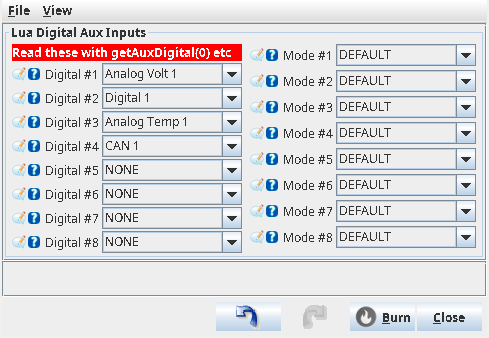

getAuxDigital(index)

parameter	type	description
index	integer

getDigital(index)

parameter	type	description
index	integer

readPin(name)

Returns the physical value of an MCU pin by its name.

parameter	type	description
name	string	The name of the MCU pin to return the value of; e.g. "PD15".

startPwm(index, frequency, duty)

parameter	type	description
index	integer	The index of the PWM output to control; 0 through 7.
frequency	float	The frequency to set the PWM output to. Values are clamped to be not less than 1 hertz and not more than 1000 hertz.
duty	float	The duty cycle (on time) to set the PWM output to. Values are clamped to be not less than 0.0 and not more than 1.0.

setPwmDuty(index, duty)

parameter	type	description
index	integer	The index of the PWM output to control; 0 through 7.
duty	float	The duty cycle (on time) to set the PWM output to. Values are clamped to be not less than 0.0 and not more than 1.0.

setPwmFreq(index, frequency)

parameter	type	description
index	integer	The index of the PWM output to control; 0 through 7.
frequency	float	The frequency to set the PWM output to. Values are clamped to be not less than 1 hertz and not more than 1000 hertz.

setLuaGauge(index, value)

Sets the given Lua gauge to the provided value. Currently two Lua guages are supported: indices 1 and 2. This can also be accomplished by using the Lua Sensor interface, but setLuaGauge is more convenient to use.

parameter	type	description
index	integer	The index of the Lua gauge to set.
value	number	The value to set the Lua gauge to.

Sensors

hasSensor(index)

Checks whether a particular sensor is configured (whether it is currently valid or not).

parameter	type	description
index	integer	The index of the sensor to check; see sensor_type.h.

getSensor(name)

Returns the value of a sensor by its name.

parameter	type	description
name	string	The name of the sensor to get the value of; see sensor_type.h.

getSensorRaw(index)

Returns the raw value of a sensor by its name. For most sensors this means the analog voltage on the relevant input pin.

note

Returns 0 if the sensor doesn't support raw readings, isn't configured/valid, or has failed.

parameter	type	description
name	string	The name of the sensor to get the value of; see sensor_type.h.

getSensorByIndex(index)

Returns the value of a sensor by its index.

parameter	type	description
index	integer	The index of the sensor to get the value of; see sensor_type.h.

Sensor

Sensor is a Lua type that allows to control the value of sensors. The type is implemented as a "stored-value" sensor, that operates asynchronously and whose value is invalidated periodically upon a given timeout (initially: 100 milliseconds).

sensor = Sensor.new("OilPressure")

Sensor.new(name)

parameter	type	description
name	string	The name of the sensor to control; see sensor_type.h.

Sensor.set(value)

Sets the controlled sensor's value as provided.

parameter	type	description
value	float	The value to set the controlled sensor to.

Sensor.setRedundant(isRedundant)

Sets the redundancy-aspect of the controlled sensor.

parameter	type	description
isRedundant	boolean	Whether or not the controlled sensor is redundant.

Sensor.setTimeout(timeoutMs)

Sets the timeout for the controlled sensor's stored-value.

parameter	type	description
timeoutMs	integer	How long the controlled sensors value is valid for, in milliseconds.

Sensor.invalidate()

Invalidates the controlled sensor's stored-value.

no parameters

Firmware ... TODO

TODO

getOutput(name)

Returns the value of an "output" from FOME: allows to inspect "internal" firmware state.

TODO: reference list of valid outputs

parameter	type	description
name	string	The name of a FOME output/state to return the value of.

setClutchUpState(isUp)

Use setClutchUpState to tell FOME about CAN-based brake pedal.

parameter	type	description
isUp	boolean	Whether the clutch is up or not.

setBrakePedalState(isUp)

Use setBrakePedalState to tell FOME about CAN-based brake pedal.

parameter	type	description
isUp	boolean	Whether the brake pedal is up or not.

setAcRequestState(isRequested)

Use setAcRequestState to tell FOME about CAN-based A/C request.

parameter	type	description
isRequested	boolean	Whether the A/C is requested on or not.

restartEtb()

TODO

no parameters

setEtbDisabled(isDisabled)

TODO

parameter	type	description
isDisabled	boolean	Whether the ETB is disabled or not.

setIgnDisabled(isDisabled)

TODO: setIgnDisabled function for all kinds of cranking safety systems

parameter	type	description
isDisabled	boolean	Whether the ignition is disabled or not.

setAcDisabled(isDisabled)

TODO: Disable/suppress A/C functionality regardless of what and how enables it, an override kind of deal.

parameter	type	description
isDisabled	boolean	Whether the A/C is disabled or not.

getTimeSinceAcToggleMs()

TODO

no parameters

getCalibration(name)

TODO: Gets current calibration value for specified scalar setting name. For example getCalibration("cranking.rpm")

For complete list of possible calibration names (valid parameter values) and descriptions see value_lookup_generated.md.

parameter	type	description
name	string	TODO

setCalibration(name, value, needEvent)

TODO: Sets specified calibration setting to specified value. Fires calibration change event depending on needEvent parameter.

For example setCalibration("cranking.rpm", 900, false)

parameter	type	description
name	string	TODO
value	number	TODO
needEvent	boolean	TODO

setTimingAdd(angle)

TODO: Use negative values to retard timing.

parameter	type	description
angle	float	TODO

setTimingMult(coefficient)

TODO

parameter	type	description
coefficient	float	TODO

setFuelAdd(amount)

TODO: Amount of fuel mass to add to injection, scaled by fuel multiplier (setFuelMult(coefficient)); initially 0.

parameter	type	description
amount	float	TODO

setFuelMult(coefficient)

TODO: Amount to scale added fuel mass by; initially 1.0;

parameter	type	description
coefficient	float	TODO

setEtbAdd(percent)

TODO: Amount of ETB to add, as a percent of the wide-open value: e.g. 10 for +10%. The value is a static amount to add to the determined value, e.g. TPS of 5% w/ 10 results in 15% ETB. #torque

parameter	type	description
percent	float	TODO

getGlobalConfigurationVersion()

TODO

no parameters

getFan()

TODO

no parameters

getAirmass()

TODO

no parameters

setAirmass(airmass, load)

TODO

parameters	type	description
airmass	float	TODO
load	float	TODO: percent

resetOdometer()

TODO

no parameters

stopEngine()

TODO

no parameters

vin(index)

Lookup a character of the set vehicle identification number (VIN) at the given index.

parameter	type	description
index	number	The character index of the set VIN to return.

setIdleAdd

TODO

parameters	type	description
amount	float	TODO

setIdleAddRpm

TODO

parameters	type	description
amount	float	TODO

CAN Bus

info

These functions are included in builds of FOME that incorporate CAN support.

All FOME boards support at least one CAN bus, which has index 1. Some recent boards support multiple CAN buses, with index 2 and higher.

The canRxAdd and canRxAddMask functions are available in various forms with differing number and types of parameters. They are conceptually the same, with canRxAddMask providing an extra argument to filter specific frames by a bit-mask. Currently, FOME allows for up to 48 different CAN frame reception filters, and will issue an error when attempting to add more filters than the limit (OBD_PCM_Processor_Fault: Too many Lua CAN RX filters).

When not using the forms of canRxAdd and canRxAddMask with a callback argument, FOME will invoke the global onCanRx function defined in the Lua script. Otherwise, the function referenced in the callback argument will be invoked.

The callback argument and onCanRx function is expected to be a Lua function with the following parameters:

parameter	type	description
bus	integer	The CAN bus index the frame was received on.
id	integer	The CAN ID of the received frame.
dlc	integer	The received CAN frame's data length.
data	integer table	The received CAN frame's data; an integer table from index 0 through (dlc - 1).

A script using the canRxAdd/canRxAddMask functions might look as follows:

function onCanRx(bus, id, dlc, data)
    -- Do things with received CAN frame data!
end

function handleSpecialCanRx(bus, id, dlc, data)
    -- Do things with received CAN frame data!
end

-- data handled in global onCanRx function
canRxAdd(1, 0x55)

-- data handled in special callback function
canRxAddMask(2, 0x40, 0x94, handleSpecialCanRx)

canRxAdd(bus, id, callback)

Adds a CAN frame receiption filter, filtering by CAN bus and CAN ID, which invokes the supplied function when a CAN frame passes the filter.

parameter	type	description
bus	integer	The CAN bus index to add the reception frame filter for.
id	integer	The CAN ID to add the reception frame filter for.
callback	function	The function to invoke when a received CAN frame passes the added filter.

canRxAdd(bus, id)

Adds a CAN frame reception filter, filtering by CAN bus and CAN ID.

parameter	type	description
bus	integer	The CAN bus index to add the reception frame filter for.
id	integer	The CAN ID to add the reception frame filter for.

canRxAdd(id, callback)

Adds a CAN frame reception filter, filtering by CAN ID, on all available CAN buses, which invokes the supplied function when a CAN frame passes the filter.

parameter	type	description
id	integer	The CAN ID to add the reception frame filter for.
callback	function	The function to invoke when a received CAN frame passes the added filter.

canRxAdd(id)

Adds a CAN frame reception filter, filtering by CAN ID on all CAN buses.

parameter	type	description
id	integer	The CAN ID to add the reception frame filter for.

canRxAddMask(bus, id, mask, callback)

Adds a CAN frame reception filter, filtering by CAN bus and CAN ID, which invokes the supplied function when a CAN frame passes the filter.

parameter	type	description
bus	integer	The CAN bus to add the reception frame filter for.
id	integer	The CAN ID to add the reception frame filter for.
callback	function	The function to invoke when a received CAN frame passes the added filter.

canRxAddMask(bus, id, mask)

Adds a CAN frame reception filter, filtering by CAN bus and CAN ID.

parameter	type	description
bus	integer	The CAN bus index to add the reception frame filter for.
id	integer	The CAN ID to add the reception frame filter for.

canRxAddMask(id, mask, callback)

Adds a CAN frame reception filter, filtering by CAN ID, on all available CAN buses, which invokes the supplied function when a CAN frame passes the filter.

parameter	type	description
id	integer	The CAN ID to add the reception frame filter for.
callback	function	The function to invoke when a received CAN frame passes the added filter.

canRxAddMask(id, mask)

Adds a CAN frame reception filter, filtering by CAN ID on all CAN buses.

parameter	type	description
id	integer	The CAN ID to add the reception frame filter for.

enableCanTx(isEnabled)

info

enableCanTx is available in all builds of FOME, regardless of incorporated CAN support.

Used to enable or disable CAN transmission. CAN transmission is enabled by default at startup.

parameter	type	description
isEnabled	boolean	Whether or not CAN transmission is enabled.

txCan(bus, id, isExtended, data)

Transmits a CAN frame on the specified CAN bus, with the supplied CAN ID and data.

parameter	type	description
bus	integer	The CAN bus index to transmit the frame on.
id	integer	The CAN ID to transmit with the frame.
isExtended	integer	Whether to transmit a standard (11-bit ID) or extended (29-bit ID) CAN frame.
data	integer table	The data to transmit with the CAN frame.

SENT Protocol (SAE J2716)

info

These functions are included in builds of FOME that incorporate SAE J2716 SENT support.

warning

These functions are still in development and not fully documented or supported. Use is discouraged.

getSentValue(index)

Retrieves the value of the last valid message of the specified SENT channel.

parameter	type	description
index	integer	The SENT channel to retrieve the value of; 0 through 3.

getSentValues(index)

Retrieves the values of the last valid message of the specified SENT channel.

parameter	type	description
index	integer	The SENT channel to retrieve the values of; 0 through 3.

---

Lua Functions/Hooks

Launch Control

setSparkSkipRatio

Crankshaft Position Input

selfStimulateRPM

getEngineState

getTimeSinceTriggerEventMs

Boost Control

setBoostTargetAdd

setBoostTargetMult

setBoostDutyAdd

Vehicle Speed

getCurrentGear

getRpmInGear
